Download Manual: Oximus Aquila 4401 Manual

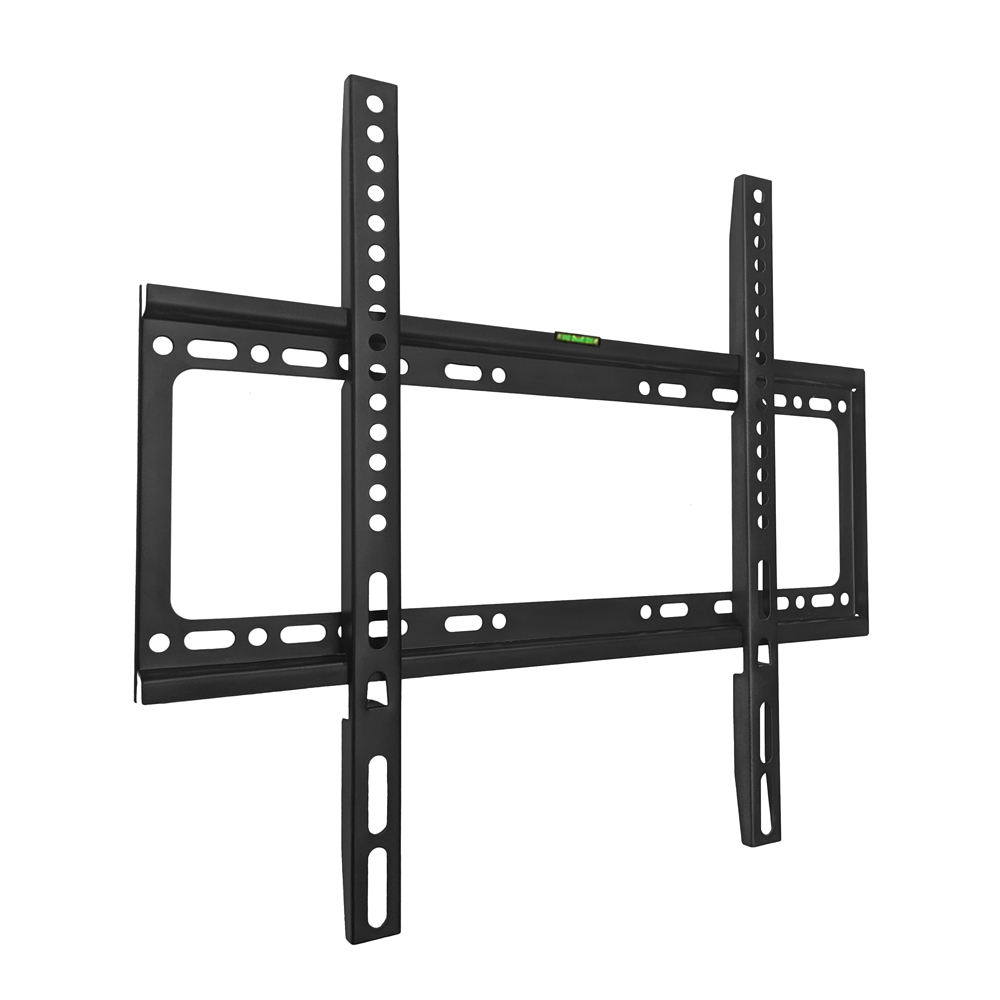

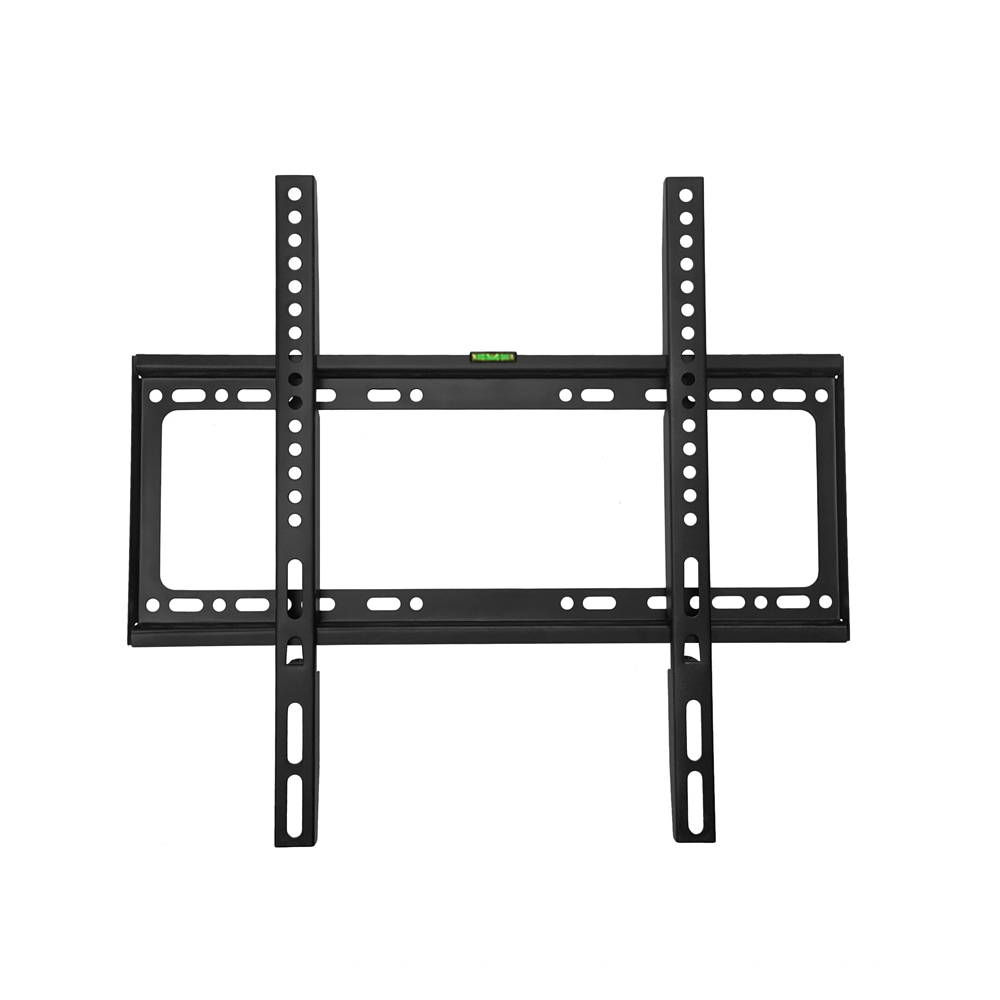

OXIMUS AQUILA 4401 Fix wall mount is compatible with any 22″-55″ dislay panel and the load-bearing up to 30kgs. Slim design sits just 20mm from wall to complement the sleek look of ultra-thin display. Suited for VESA hole up to 400×400. The power coating finish guarantees the durability and the simple construction is easy to install.
Aquila wall mounts are constructed of high quality cold-formed steel for the ultimate in safety and reliability. Each wall mount has been strength tested to ensure it is safe for both your equipment and your family.
Great for saving surface space by mounting your LCD or monitor on the wall. Full motion allows maximum flexibility — tilts and swivel your TV for easy viewing from any seat in a room. It features decorative covers to ensure an elegant and tidy look. Simple construction enables easy installation.
Best for TVs that need to be mounted above eye level, the tilt functionality allows you to adjust the screen angle to eliminate glare and to provide a better viewing angle.
* Vesa Size
The VESA Interface Standard defines the distance in millimeters between the four mounting holes on
the back of a TV (distance horizontally x distance vertically).
VESA is a standard used for Monitor and TV wall mounts and wall mounting systems, adapted by most Monitor and TV brands.
Common VESA sizes are 200 x 200, 400 x 400 and 600 x 400 depending on the screen size of your TV.
**Where can I find my VESA size?
You can refer to the specifications in the product manual but perhaps the fastest and easiest way to
find out the VESA size of your TV is just by measuring it. Locate the four holes in the back of your television,
you just need to measure these from left to right and top to bottom.
By now you should know the horizontal and vertical distance, between the holes and therefore the VESA size of your Monitor or TV.
***How do I determine which bracket is suitable for my monitor or TV?
To determine a bracket whether it is suitable for your monitor or TV is to make sure the vesa used by the monitor or TV
and also the weight of your monitor or TV. Do not based on your monitor or TV inch.
