Download Manual: Oximus EV65 Manual

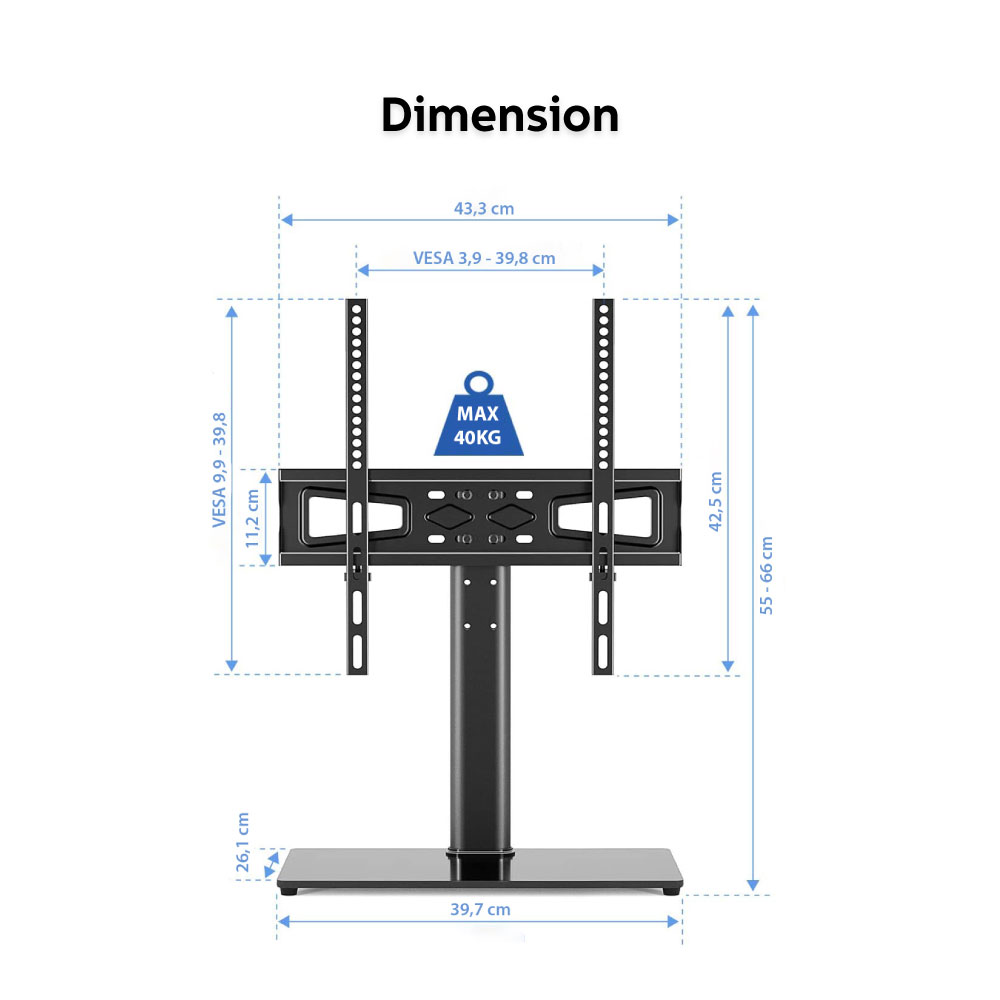

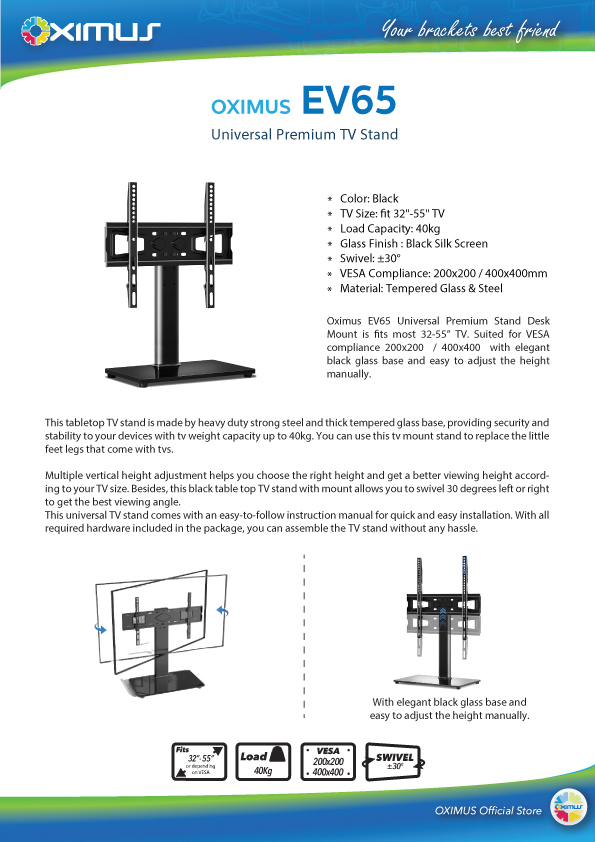

Oximus EV65 Universal Premium Stand Desk Mount is fits most 32-55” TV. Suited for VESA compliance 200×200 – 400×400 with elegant black glass base and easy to adjust the height manually.
This TV stand is made by heavy duty strong steel and thick tempered glass base, providing security and stability to your devices with tv weight capacity up to 40kg. You can use this tv mount stand to replace the little feet legs that come with tvs.

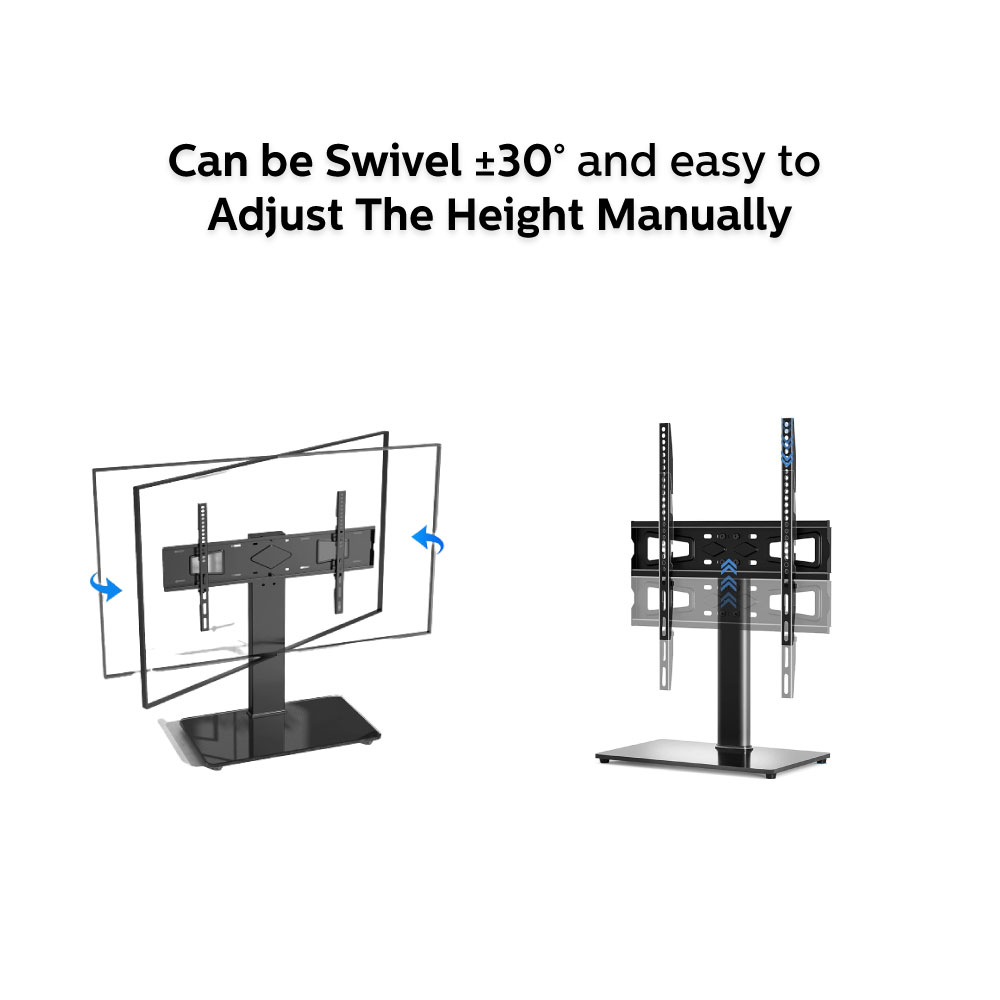

Multiple vertical height adjustment helps you choose the right height and get a better viewing height according to your TV size. Besides, this black table top TV stand with mount allows you to swivel 30 degrees left or right to get the best viewing angle.

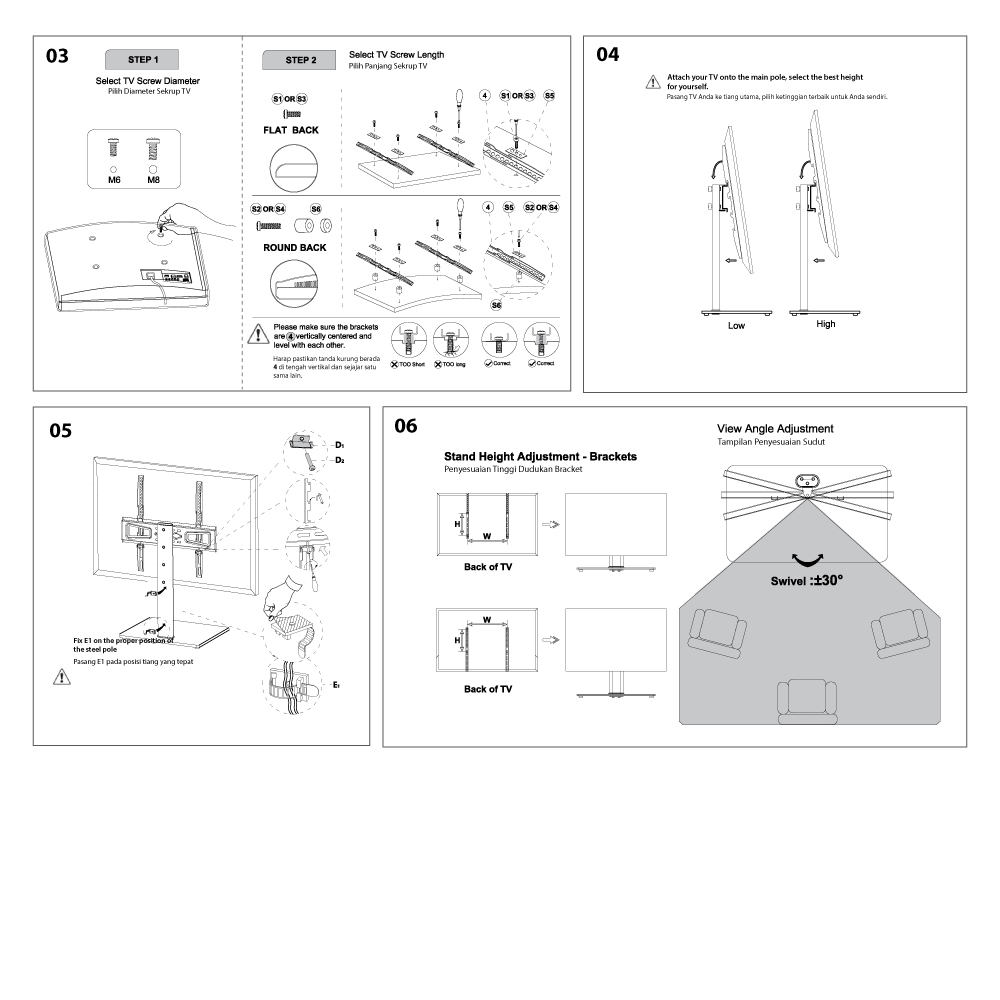

This universal TV stand comes with an easy-to-follow instruction manual for quick and easy installation. With all required hardware included in the package, you can assemble the TV stand without any hassle.

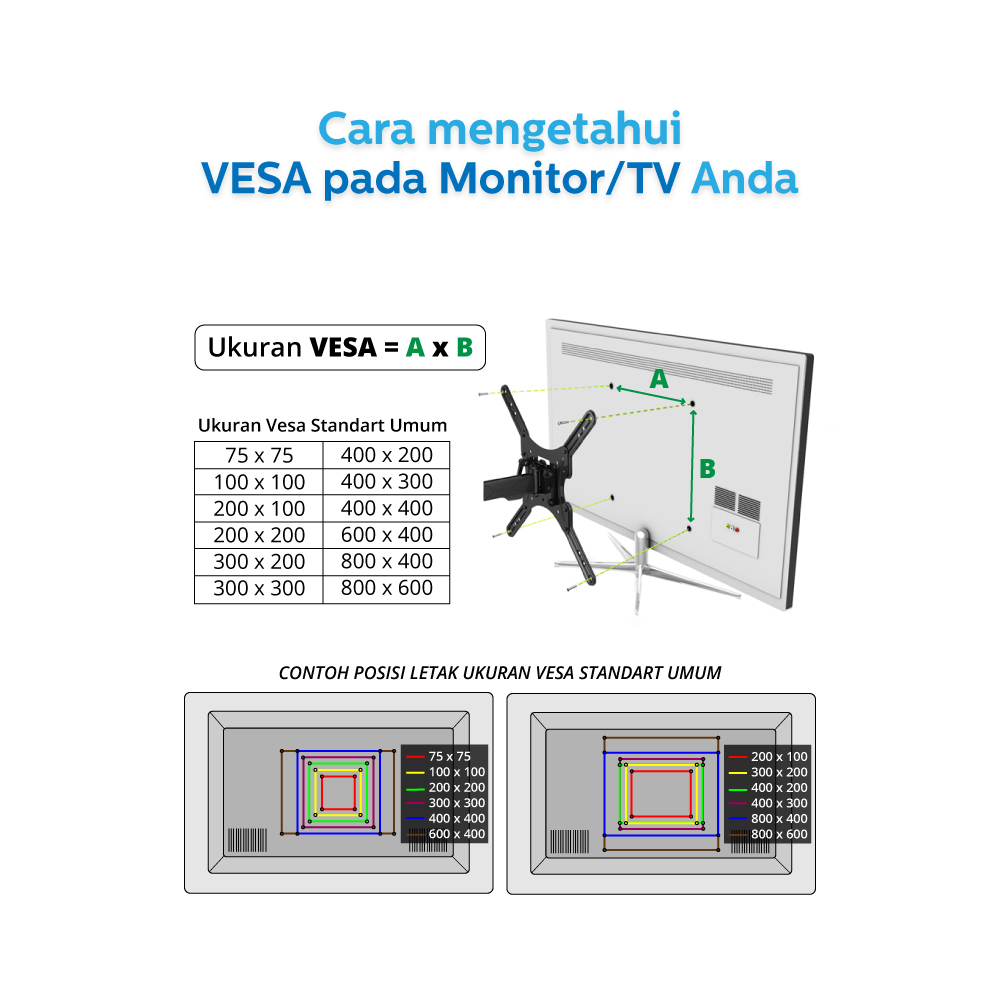

* Vesa Size
The VESA Interface Standard defines the distance in millimeters between the four mounting holes on
the back of a TV (distance horizontally x distance vertically).
VESA is a standard used for Monitor and TV wall mounts and wall mounting systems, adapted by most Monitor and TV brands.
Common VESA sizes are 200 x 200, 400 x 400 and 600 x 400 depending on the screen size of your TV.
**Where can I find my VESA size?
You can refer to the specifications in the product manual but perhaps the fastest and easiest way to
find out the VESA size of your TV is just by measuring it. Locate the four holes in the back of your television,
you just need to measure these from left to right and top to bottom.
By now you should know the horizontal and vertical distance, between the holes and therefore the VESA size of your Monitor or TV.
***How do I determine which bracket is suitable for my monitor or TV?
To determine a bracket whether it is suitable for your monitor or TV is to make sure the vesa used by the monitor or TV
and also the weight of your monitor or TV. Do not based on your monitor or TV inch.
