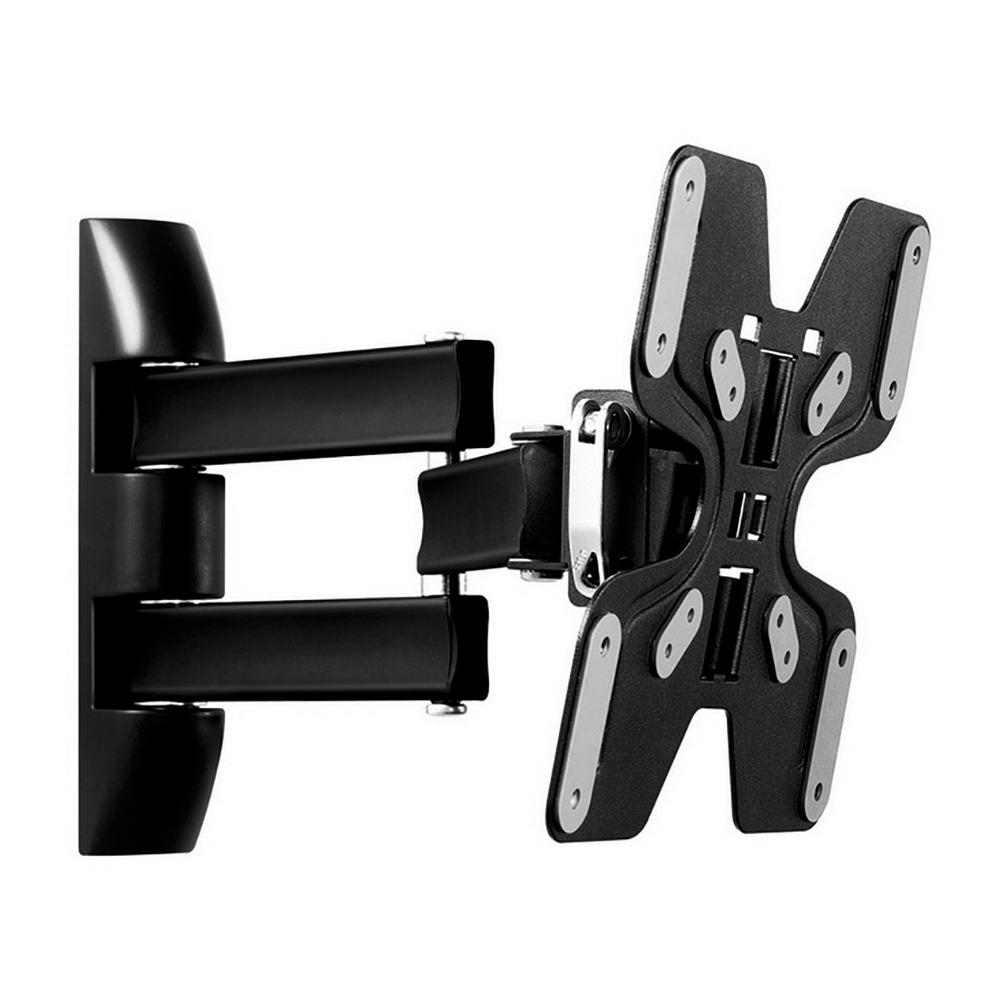

OXIMUS Lynx R2231 Wall Mount support 1 display panel and compatible with any 13" – 27" display panel. The load-bearing up to 25Kg. Suited for display panel with VESA hole 75×75 – 100x100mm. Enables you to adjust monitor with -15° / +15° tilt and 90° swivel for the most comfortable viewing angle. *Note: Larger display panel can be used with this bracket as long the VESA hole is matched and the weight not exceed 25Kg.
OXIMUS Lynx Series is easy to use and install. View your TV or Monitor without straining your neck when it?s placed above viewing height with the tilting wall mount. Enjoy your TV or Monitor as a beautiful piece of wall art with this compact wall mount.
Hardware Kit included
M4x12mm Bolt(x5), M6x12mm Bolt(x4), M8x12mm Bolt(x4), M5x38mm Screw(x4), M5x12 Washer(x4), M8x14 Washer(x4), Fisher(x4), Allen Key(x2)
* Vesa Size
The VESA Interface Standard defines the distance in millimeters between the four mounting holes on
the back of a TV (distance horizontally x distance vertically).
VESA is a standard used for Monitor and TV wall mounts and wall mounting systems, adapted by most Monitor and TV brands.
Common VESA sizes are 200 x 200, 400 x 400 and 600 x 400 depending on the screen size of your TV.
**Where can I find my VESA size?
You can refer to the specifications in the product manual but perhaps the fastest and easiest way to
find out the VESA size of your TV is just by measuring it. Locate the four holes in the back of your television,
you just need to measure these from left to right and top to bottom.
By now you should know the horizontal and vertical distance, between the holes and therefore the VESA size of your Monitor or TV.
***How do I determine which bracket is suitable for my monitor or TV?
To determine a bracket whether it is suitable for your monitor or TV is to make sure the vesa used by the monitor or TV
and also the weight of your monitor or TV. Do not based on your monitor or TV inch.
